FR Synergist

Sb2O3 antimony trioxide replacement alternative substitute

author:Novista  time:2023-2-15 17:33:47 visits:80
Sb2O3 antimony trioxide replacement alternative substitute

PRODUCT DETAILS

New type inorganic flame retardant synergist RTP-50





Overview: RTP-50 is a new type of superfine powder additive inorganic flame retardant synergist with excellent performance.    It is a mineral powder material that is made of wollastonite 600 meters below ground, through high-tech surface treatment agents and nano-modification technology, and was jointly developed by the R&D team of our company, Tsinghua University and relevant China national academicians.



Product advantages:

1. Reduce customer’s production cost.

2. little of non-eco ingredients.

3. Reduction of product density

4. Reduce the amount of titanium dioxide needed for light-colored products.

5. Shorten the process of injection molding.

6. Increase the heat distortion temperature of the final product



Main ingredients: Magnesium Oxide/Silica/etc

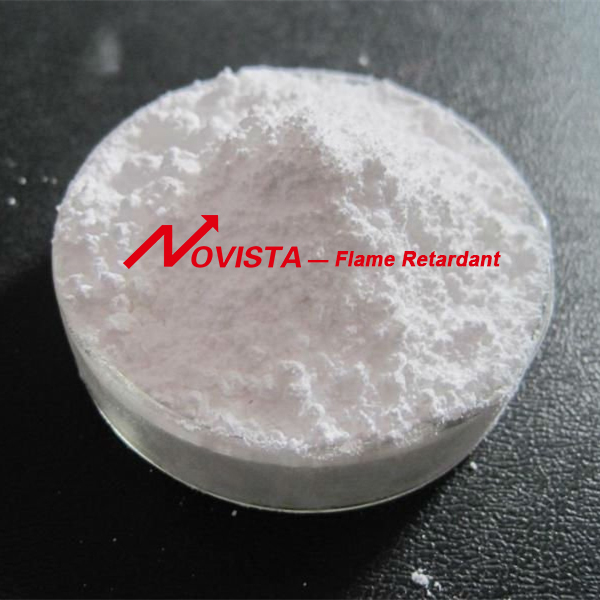

Properties: This product is a white powder, whiteness 98%, average particle size 1.1um, loss on ignition 5.  It has the characteristics of high whiteness, high fineness, and high purity.     It has a large specific surface area, and the surface effect and volume effect of ultra-fine particles.  No skin irritation, no ordor, and no corrosion.





Application rangesuitable for PA, PBT, PP, PET, ABS, PVC and PC/ABS……





Usage: This product is a new type of superfine additive inorganic flame retardant with excellent performance.

It can be used:

1. in halogen + antimony trioxide flame retardant system,  to replace part of antimony trioxide.

2. in antimony trioxide flame retardant system alone (no halogen flame retardant involved), to replace part of antimony trioxide.



Thermal decomposition temperature of RTP50 is 340°C.



Thanks to its special surface treatment, RTP50 achieves excellent compatibility and adhesion with plastic resins, has a great viscosity reduction effect;



RTP50 has good dipping performance with glass fiber and thus less mixing time ;

Allow good flowability and molding performance of the compound.





When used together with Sb2O3, the dosage of Sb2O3 can be greatly reduced, while

90% of the mechanical properties can be maintained.



Thanks to the high whiteness of RTP50, the amount of titanium dioxide (TiO2) needed for the production of white products can also be reduced, thus furtherly help cutting customer’s production cost.



Flame-retardant mechanism: This product can play an acid catalysis effect during the combustion of polymers, making the whole system partially cross-linked and carbonized, thus forming a char protective layer, to prevent the release of volatile decomposition products.  At the same time, RTP-50 can also reduce the decomposition temperature of antimony oxyhalide generated during the reaction between halogen flame retardants and Sb2O3, so as to achieve the purpose of assisting flame retardancy.



Features:

1. Excellent high-temperature resistance and thermal stability. TGA is only 0.5‰wt within 400℃.

2. Good compatibility with modified plastic products such as PA, PBT, PP, PET, ABS, PVC and PC+ABS alloy, therefore the mechanical properties of the final products can be well maintained.

3. RTP50 can replace Sb2O3 by 40%60%wt, and at the same time no influence to the flame retardant performance.     Thus saving much production costs.

4. With no more than 3% addition of RTP50, flowability of the plastic compound can can be significantly improved, thereby improving the dimensional stability and surface smoothness of the final product.

RTP50 can also help significantly improve the electrical properties ( dielectrical strength and CTI) of the product.

RTP50 can help maintain the mechanical and electrical properties of the product under high temperature and high humidity circumstances.






                Test data on the following pages  ↓↓↓










         RTP-50 application data in bromine-antimony based

flame retardant modified plastics







Table 1: RTP50 used in PBT (formulas)




1

2

3

4

5



PBT%



58

575

575

575



57

DBDPE%

9

9

9

9

9

Sb2O3%

3

2

15

1

0

RTP-50%

0

15

2

25

4

Other additive

5

5

5

5

5





Table 2: RTP50 used in PBT (test results)




Test standard

1

2

3

4

5

unit

Tensile strength

GB/T1040-1992

104

107

106

108

106

MPa

Elongation at break

GB/T1040-1992

2.1

2.3

2.4

2.2

2.6

%

Bending strength

GB/T9341-2000

137

136

139

140

139

MPa

Bending modulus

GB/T9341-2000

7981

8106

7930

8008

8219

MPa

Notched impact strength

GB/T1843-1996

8.2

8.4

8.5

8.4

8.6

KJ/m2

HDT

GB/T1634-2004

219

221

220

218

219

Melt index

GB/T3682-2000

27.3

31

32.5

34.1

37

g/10min

FR grade

UL-94

V-0

V-0

V-0

V-1

HB

/

Ash content

GB/T9345-1988

243

251

255

248

253

%


 Table 3 RTP50 used in PA66 (formulas)




6

7

8

9

10

PA66%

56.5

56

55.5

55.5

55.5

DBDPE%

10

10

10

10

10

Sb2O3%

3.5

3

2.5

1.5

0

RTP-50%

0

1

2

3

4.5

Other additive

5

5

5

5

5

GF%

25

25

25

25

25







Table 4: RTP50 used in PA66 (test results)




Test standard

6

7

8

9

10

unit

Tensile strength

GB/T1040-1992

144

150

149

153

155

MPa

Elongation at break

GB/T1040-1992

2.8

2.6

2.9

3.1

3.0

%

Bending strength

GB/T9341-2000

183

195

191

197

196

MPa

Bending modulus

GB/T9341-2000

7670

7809

7783

7841

7952

MPa

Notched impact strength

GB/T1843-1996

15.3

16.1

16.2

16.7

17.1

KJ/m2

HDT

GB/T1634-2004

253

255

254

255

253

Melt index

GB/T3682-2000

/

/

/

/

/

g/10min

FR grade

UL-94

V-0

V-0

V-0

V-1

HB

/

Ash content

GB/T9345-1988

256

248

253

249

255

%





               RTP-50 used in PA66 and PBT:   discussion and conclusion



According to the dosage table 1, 3 and sample test result table 2, 4, we can find similar changes after adding RTP-50 into PBT and PA66 FR systems respectively. The most significant change is the enhanced MFR(melt flow rate) with the increased dosage of RTP-50, while other mechanical properties are basically unchanged, which is good for the later molding process.



Moreover, when half the dosage of Sb2O3 is replaced by RTP-50, the FR performance is well maintained.  But RTP-50 can not yet completely replace Sb2O3 in Br-FR systems.



RTP-50 is an inorganic powder, more eco-friendly than Sb2O3. Most importantly, RTP-50 price is just about 1/6-1/5 the price of Sb2O3. And RTP-50 production



is not dependent on the expensive antimony resources, thus can largely reduce the customer’s cost for FR-treatment of PA66 and PBT, gaining customers the upper hand in market competition.



In addition, PA66 added with RTP-50 is whiter than with Sb2O3 alone, with enhanced physical appearance and coloring performance.





















      Table 5  RTP50 used in ABS (formulas)




11

12

13

14

15

ABS%

81

80

80

80

80

DBDPE%

12

12

12

12

12

Sb2O3%

4

3

2

1

0

RTP-50%

0

2

3

4

5

Other additive

3

3

3

3

3







Table 6: RTP50 used in ABS (test results)




Test standard

11

12

13

14

15

unit

Tensile strength

GB/T1040-1992

39.3

41.0

40.7

40.8

41.5

MPa

Elongation at break

GB/T1040-1992

18.6

21.3

20.3

23.8

21.6

%

Bending strength

GB/T9341-2000

58

57

60

58

61

MPa

Bending modulus

GB/T9341-2000

2491

2511

2485

2527

2508

MPa

Notched impact strength

GB/T1843-1996

12.1

12.4

12.2

12.6

13.2

KJ/m2

Melt index

GB/T3682-2000

3.1

4.2

4.8

5.9

6.5

g/10min

FR grade

UL-94

V-0

V-0

V-0

V-1

HB

/

Density

GB/T1033-1986

1.20

1.18

1.16

1.15

1.13

g/cm3























                   RTP-50 used in ABS:  discussion and conclusion



According to the dosage table 5 and sample test result table 6, we can find enhanced MFR(melt flow rate), enhanced notch impact strength, and significantly lower material density with the increased dosage of RTP-50.



Moreover, when half or less the dosage of Sb2O3 is replaced by RTP-50, the FR performance is well maintained.



Besides, ABS added with RTP-50 is whiter than with Sb2O3 alone,and has better coloring performance.









       Table 7  RTP50 used in PP (formulas)




16

17

18

19

20

PP%

60

585

585

585

585

DBDPE%

18

18

18

18

18

Sb2O3%

6

45

3

15

0

RTP-50%

0

3

45

6

75

其它

16

16

16

16

16







Table 8: RTP50 used in PP (test results)




Test standard

16

17

18

19

20

unit

Tensile strength

GB/T1040-1992

24.3

23.7

25.5

25.3

24.2

MPa

Elongation at break

GB/T1040-1992

32

36

35

41

38

%

Bending strength

GB/T9341-2000

36

38

36

35

37

MPa

Bending modulus

GB/T9341-2000

2209

2187

2241

2133

2270

MPa

Notched impact strength

GB/T1843-1996

3.6

3.9

3.8

4.2

4.2

KJ/m2

Melt flow index

GB/T3682-2000

9.4

11.1

11.9

13.4

15.7

g/10min

HDT

GB/T1634-2004

130

132

132

133

134

FR grade

UL-94

V-0

V-0

V-1

V-1

HB

/

Density

GB/T1033-1986

1.23

1.20

1.19

1.17

1.14

g/cm3





                 RTP-50 used in PP:  discussion and conclusion



According to the dosage table 7 and sample test result table 8, we can find enhanced MFR(melt flow rate), enhanced notch impact strength, and significantly lower material density with the increased dosage of RTP-50.



And, when 1/3 or less the dosage of Sb2O3 is replaced by RTP-50, the FR performance is well maintained.



Moreover, PP added with RTP-50 is whiter than with Sb2O3 alone, with enhanced surface glossiness and coloring performance.



Besides, as RTP-50 is an ultra-fine inorganic powder, it can perform nucleation effect in PP compounding, reducing the molding cycle, improving material distortion temperature. At the same time it can reduce the dosage of special nucleating agent in the compounding process, thus furtherly reducing the production cost.







 Table 9  RTP50 used in HIPS (formulas)




21

22

23

24

25

HIPS%

79

78.5

78.5

78

78

DBDPE%

13

13

13

13

13

Sb2O3%

4.5

3

2

1

0

RTP-50%

0

2

3

4.5

5.5







 Table 10: RTP50 used in HIPS (test results)




Test standard

21

22

23

24

25

unit

Tensile strength

GB/T1040-1992

24.3

25.1

24.8

25.1

25.3

MPa

Elongation at break

GB/T1040-1992

49

61

52

60

69

%

Bending strength

GB/T9341-2000

43

45

43

47

44

MPa

Bending modulus

GB/T9341-2000

2180

2231

2209

2287

2313

MPa

Notched impact strength

GB/T1843-1996

11.8

12.3

12.4

12.7

12.6

KJ/m2

Melt index

GB/T3682-2000

8.8

9.3

9.4

9.7

9.6

g/10min

FR grade

UL-94

V-0

V-0

V-1

HB

HB

/

Density

GB/T1033-1986

1.15

1.13

1.12

1.10

1.09

g/cm3





RTP-50 used in HIPS:  discussion and conclusion

According to the dosage table 9 and sample test result table 10, we can find similar effect of RTP-50 added into HIPS, compared with RTP-50 added into ABS.





                      RTP50 used in PVC wire and cable (formulas)




1

2

3

4

PVC(K=71-72)

100

100

100

100

DOP

35-40

35-40

35-40

45-50

Chlorinated Paraffin-52

14-18

14-18

14-18

14-18

Calcium Carbonate

30-50

30-50

30-50

30-60

Heat Stabilizer

3-5

3-5

3-5

3-5

Sb2O3

15

2

2.5

1.5

RTP-50

15

2

2.5

1.5

LOI%

28-29

29.5-30.5

31.5-32.5

27-28















Conclusion



As a new type inorganic powder additive-type flame retardant, RTP-50 can partly replace Sb2O3 in the bromine-antimony based flame retardant modification of many plastic types.



While reducing customer’s production costs, it can also significantly improve the processability of materials. And can to some extent improve some of the mechanical properties of the modified plastic.



With the fast development of modern society, requests and expectations on modified plastics continue to increase.  And the continuous consumption of Metal mineral resources, which are non-renewable, their quantities are decreasing year by year due to increasing human consumption.



RTP50, as a new type additive, can help ease the consumption of precious mineral resources (antimony), and much more eco-friendly than antimony, thus worthy of customer welcome and acceptance.
