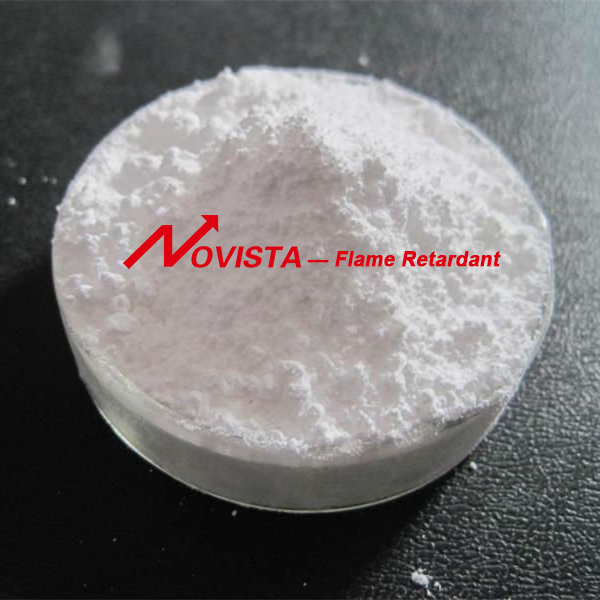

ProFlame® PNPO-G3
PNPO-G3 is a halogen-free flame retardant , which develops its effectiveness through phosphorus /
nitrogen synergism. When incorporated into polymer, which can meet the requirement of UL94-V0(0.75-
1.6mm) and meet ROHS and REACH environmental regulations .
Benefits
•Compared with bromine-antimony flame retardant, the product density is lower and the comprehensive cost of formula is lower
• With high thermal decomposition temperature , excellent heat aging resistance and excellent UV
stability, it can adapt to a wide range of processing technology and application
• Compared with traditional ammonimum polyphosphate flame retardant,it has excellent precipitation resistance and better hydrolysis resistance
• Low smoke density and low smoke gas corrosivity,good recyclability
Technical Data
Items Spec
Appearance White free-flowing powder
P content, % 18-22
1% TGA Temperature, °C ≥260
D50 particle size, um ≤10
Volatile,% ≤1.0
Whiteness ≥90
Bulk density,g/cm3 0.40-0.60
Recommended dosage
Polymer | Recommended PNPO-G3 dosage |
PP | UL94 V-0(1.5mm) - 20-26 wt% UL94 5VA(2.0mm) - 30-35 wt% |
PP+30%GF | UL94 V-0(1.5mm) - 20-26 wt% |
PE | UL94 V-0(1.5mm) - 28-32 wt% |
TPE | UL94 V-0(1.5mm) - 32-35 wt% |
TPV | UL94 V-0(1.5mm) - 37-39 wt% |
Remark: For Non-glass-fiber system, it is recommended to add 0.2-0.4% anti-dripping agent
Processing instruction:
1. The optimum conditions for incorporating should be determined in each individual case. Care must be taken to ensure homogeneous dispersion of all components.
2.Both single- and twin-screw extruders are suitable for incorporating the product. The temperature of the polymer melt should not exceed 250°C.
3.Choosing proper filler and pigment .Calcium carbonate, carbon black, phthalocyanine green, zinc white powder will reduce Flame retardant efficiency
Package & Storage:
Net weight 25KG Composite paper bag.
Minimum shelf life is 12 months stored in a dry and ventilated warehouse.
