HPCTP PCPZ Hexaphenoxycyclotriphosphazene Phenoxycyclotriphosphazene 1184-10-7

BASIC information
Product Name：Hexaphenoxycyclotriphosphazene；HPCTP; Phenoxycyclotriphosphazene；PCPZ
CAS No.: 1184-10-7
Molecular Formula: C₃₆H₃₀N₃O₆P₃
Molecular Weight: 693.57

Application:

This product is additive flam e retardant. It is mainly used in PC and PC/ABS resins. It has good flame retardancy on epoxy resin, it can be used to make EMC for IC Packaging, it’s flame retardancy is better than Brominated flame retardant, can reach UL-94V0 grade. Oxygen index could reach 33.1%. When it is used in Benzoxazine Resin glass cloth laminate, if the HPCPZ mass fraction is 10%, the scale of burning could reach V-0 grade, the parallel breakdown voltage is 47KV. When it is used in Polythene, the LOI of final flame retardancy polythene could reach 30-33. After used in viscose spinning solution, we could get the flame retardant viscose fiber with oxygen index 25.3-26.7. If the added amount is 12% in PC/ ABS, it could pass the UL-94 V0 test. It also can be used in LED, powder coating, potting material and polymers.

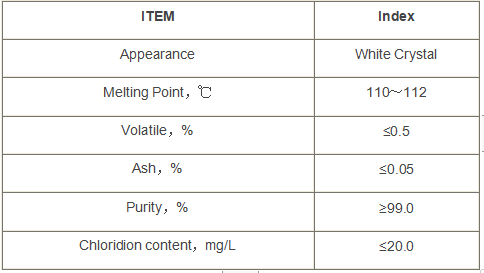

Specification

Advantage
1、The main structure of HPCTP is P、N， this structure is very stable and it is halogen free product, after burning it will not produce smog secondary disaster.
2、The thermal stability of this product is very strong. It can endure high temperature above 250℃ in long time and it also can endure very low temperature. After using the HPCTP, the PC has great water proof, Oil proof and will not be eroded by organic solvent.
3、Flame retardance is good and the dosage of this product is very little, only 50% than BDP and RDP, the normally dosage is 8-10% but the flame retardance can reach FV-0.
4、Due to the stable structure and very little dosage, the quality of final product will not change.

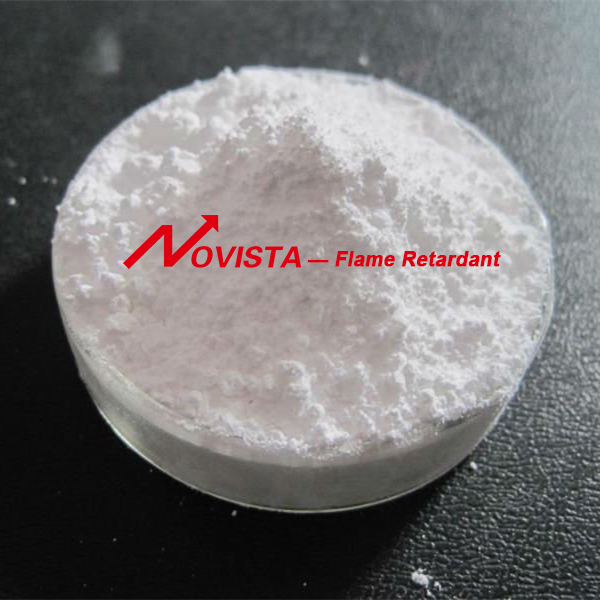

5、The appearance of HPCTP is white crystal, and it no need to heat before using. It can be easily packing and delivery.

Package and Storage:

25Kg PE bag or paper bag ;

It is not dangerous cargo .You should handle the material according to the instruction described on MSDS.The MSDS is available from sales department once required.Our regular mark is printed on the surface of package in advance .You should inform our sales person in advance If you don’t need this or have any special demand for mark.
