ProFlame® PNPO-G6
PNPO-G6 is a halogen-free flame retardant , which develops its effectiveness through phosphorus / nitrogen synergism. When incorporated into thermoplastics, which can meet the requirement of UL94- V0(0.75-1.6mm), GWIT 750°C, GWFI 960°C .Meanwhile ,PNPO-G6 can pass 70°C*168hrs water immersion test (UL746C) and meet ROHS and REACH environmental regulations .
In glass fiber reinforced PP system, the flame retardant efficiency of PNPO-G6 is 17-20% higher than ADEKA FP-2500S, so the dosage can be reduced by about 4%, which has less effect on mechanical property and lower cost.
Benefits
•Compared with bromine-antimony flame retardant, the product density is lower and the comprehensive cost of formula is lower
• With high thermal decomposition temperature , excellent heat aging resistance and excellent UV
stability, it can adapt to a wide range of processing technology and application
• Compared with traditional ammonimum polyphosphate flame retardant,it has excellent water resistance
• Low smoke density and low smoke gas corrosivity,good recyclability
Technical Data
Items Spec

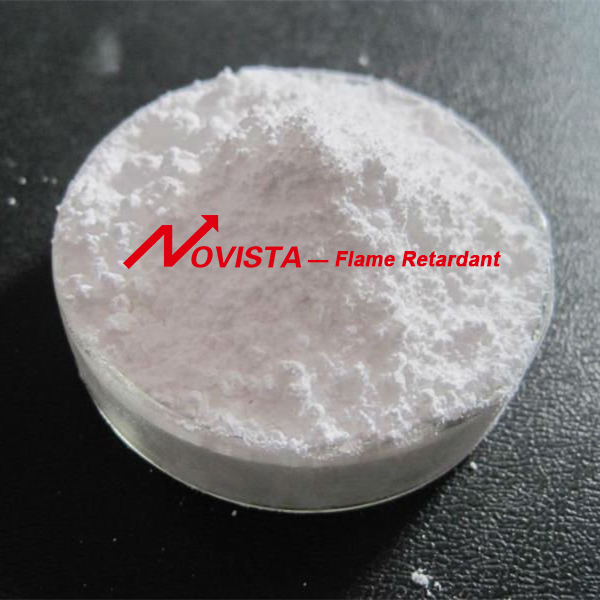

Appearance White free-flowing powder
Phosphorus content, % 19-22
Nitrogen content, % 17-20
1% TGA Temperature, °C ≥260
Average particle size, um ≤10
Whiteness ≥90
PH Value(10% suspension in water at 25°C) 3-5
Bulk density,g/cm3 0.35-0.55
Recommended dosage
Polymer | Usage guide |
PP with 30%GF | UL94 V-0(1.5mm) - 18-19wt% UL94 5VA(2.0mm) - 26-28wt% |
PP | UL94 V-0(1.6mm) - 18-20 wt% with 0.2% PTFE UL94 V-0(1.6mm) - 25 wt% without PTFE UL94 5VA(2.0mm) - 30-35 wt% |
LDPE & EVA | UL94 V-0(1.5mm) - 24-26 wt% (with 0.2% PTFE) UL94 V-0(1.5mm) - 28 wt% (without PTFE) |
HDPE | UL94 V-0(1.6mm) - 30-35 wt% |
TPE | UL94 V-0(2.0mm) - 32-35 wt% |
Package & Storage:
Net weight 25KG composite paper bag.
Minimum shelf life is 12 months stored in a dry and ventilated warehouse.
